• Wheels, 4 -16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Not available with (C7A) 10,000 lbs. (4536 kg) GVWR or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Flasher, heavy duty light emitting diode (LED)
• Glass, Solar-Ray light-tinted, all windows
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Satellite Radio or (YF1) RV Package.)

• Mirror, inside rearview (Included and only available with (UVC) Rear Vision Camera.)
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Power outlet, 120-volt
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Air bags, frontal, driver and right-front passenger (Included and only available with (ZX2) driver and front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, driver and right-front passenger, seat-mounted side-impact and head curtain side-impact (Included and only available with (C4M) 9900 lb. (4490 kg) GVWR or (C7A) 10,000 lb. (4536 kg) GVWR. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Not available with (AJ3) frontal, driver-side only air bag. Always use safety belts and the correct child restraints. NOTE: Passenger seat is removed when ordered. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

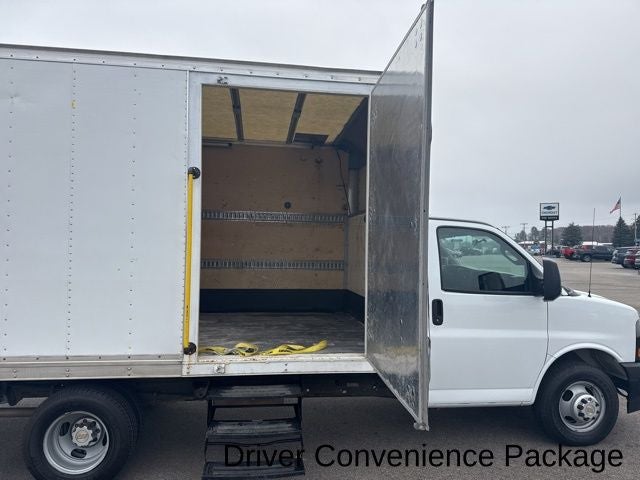

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration.

CHEVROLET 4G LTE

• and available built-in Wi-Fi hotspot for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first);

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

CONSOLE, ENGINE COVER

• with swing-out storage bin

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

ENGINE, VORTEC 6.0L V8

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (Includes external oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL

• (STD)

TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

BODY, STANDARD

• (STD)

• 16' X 6.5' 8-Lug Painted Steel Heavy Duty Wheels
• 3.73 Rear Axle Ratio
• AM/FM Stereo with MP3 Player and Digital Clock
• Body Soft-Mount Donut and Bolt
• Driver and Front Passenger High-Back Bucket Seats
• Engine Cover Console with Swing-Out Storage Bin
• Federal Emissions Requirements
• Front License Plate Kit
• Front LT225/75R16E AS BW Tires
• Heavy Duty Electronic 6-Speed Automatic Transmission with Overdrive
• Medium Pewter
• Rear LT225/75R16E AS BW Tires
• Reclining High-Back Bucket Seats with Inboard Armrests
• SEO: 3-Gallons Additional Fuel
• Summit White
• Vortec 6.0L V8 Engine
• Wide-Stance Sail Panel Mounted Outside Mirrors
• 12,300 lbs (5,579 Kgs) GVWR
• Driver Convenience Package
• Manual Day/night Inside Rearview Mirror
• OnStar and Chevrolet Connected Services Capable
• Preferred Equipment Group 1WT
• 12V power outlets 2 12V power outlets
• 16' X 6.5' 8-Lug Painted Steel Heavy Duty Wheels
• 2 Speakers
• 4-Wheel Disc Brakes
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power

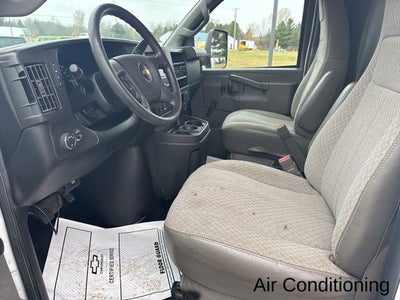

• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Audio theft deterrent Audio system theft deterrent
• Auto headlights Auto on/off headlight control
• Aux input jack Auxiliary input jack
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Body Soft-Mount Donut & Bolt
• Brake type 4-wheel disc brakes
• Bumpers front Black front bumper
• CD-R compatible
• Chevrolet Connected Access
• Chevrolet w/4G LTE
• Climate control Manual climate control
• Clock Digital clock
• Console Engine cover console
• Console storage Additional console storage
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles

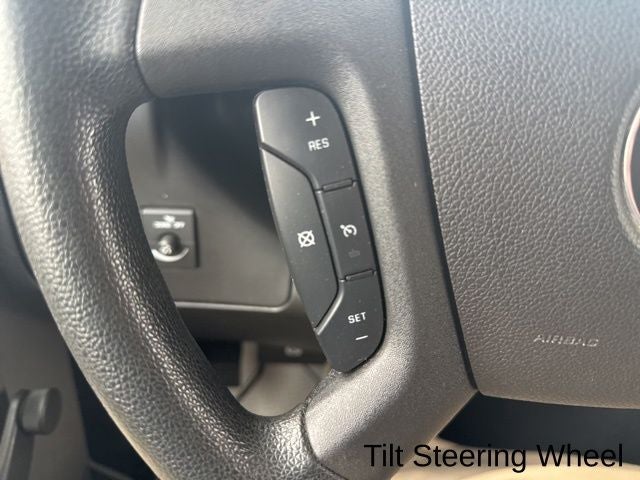

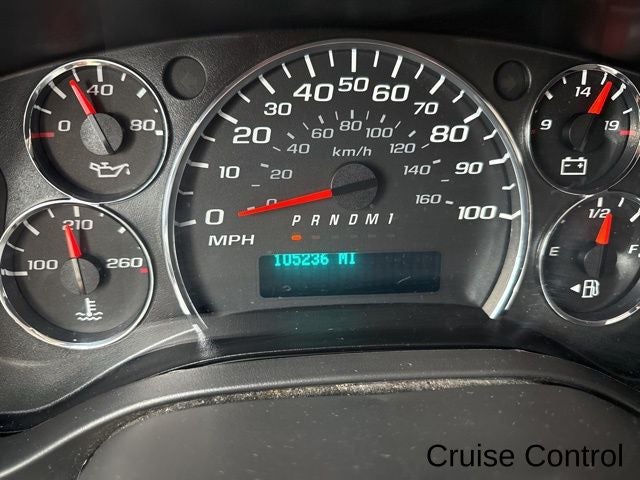

• Cruise Control
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Manual door locks
• Door mirror style Stainless steel door mirrors
• Door mirror type Trailer style side mirrors
• Drive type Rear-wheel drive
• Driver & Front Passenger High-Back Bucket Seats
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Driver's Seat Mounted Armrest
• DRL preference setting

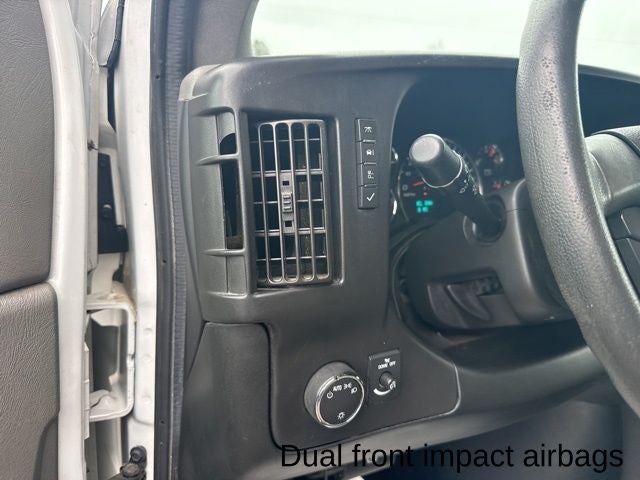

• Dual front impact airbags
• Dual front side impact airbags

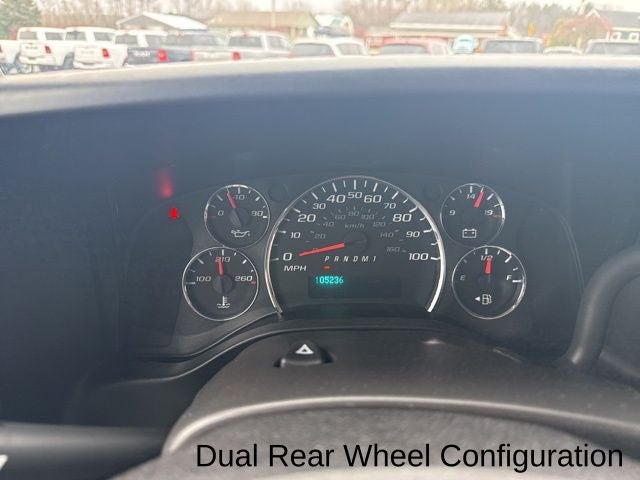

• Dual Rear Wheel Configuration
• Dual rear wheels
• Electronic Stability Control
• Electronic stability control StabiliTrak electronic stability control system
• Emergency SOS Capable OnStar Guidance vehicle integrated emergency SOS system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine cooler Engine oil cooler
• Engine Cover Console w/Swing-Out Storage Bin
• Engine Cylinders Vortec V8
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Vortec 6L V-8 variable valve control, regular unleaded, engine with 341HP
• Engine/electric motor temperature gauge
• Exterior Parking Camera Rear
• First-row windows Manual first-row windows
• Floor coverage Front floor coverage
• Floor covering Front vinyl floor covering
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front wheel independent suspension
• Fuel Type Regular Unleaded
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Front headliner coverage
• Headliner material Cloth headliner material
• Hill start assist
• Ignition Spark ignition system
• Immobilizer
• Inside Rear-View Mirror
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Internet access Chevrolet 4G LTE mobile hotspot internet access
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual Day/Night Inside Rear-View Mirror
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 2 airbags
• Number of beverage holders 5 beverage holders
• Number of doors 2 doors
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• OnStar & Chevrolet Connected Services Capable
• OnStar Basic Plan For 5 Years
• Overdrive transmission
• Overhead airbag
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger seat mounted armrest
• Power steering
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Radiator
• Radio AM/FM
• Radio: AM/FM Stereo w/MP3 Player & Digital Clock
• Rear Springs Regular grade rear springs
• Rear Vision Camera
• Rear Vision Camera Delete
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Roadside warranty 60 month/60,000 miles
• Running lights Daytime running lights
• Seating capacity 2
• Seek scan
• Selectable mode transmission
• Sequential shift control TAPshift Sequential shift control
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Single Rear Wheel Configuration
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Partial stainless steel single exhaust
• Tilt Steering Wheel
• Tinted windows Light tinted windows
• Tires LT225/75SR16 AS BSW front and rear tires
• Towing trailer sway Trailer sway control
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission electronic control
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Vehicle tracker OnStar Guidance vehicle tracker with vehicle slowdown
• Ventilated brakes Front ventilated disc brakes
• Vinyl Seat Trim
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 6.5-inch front and dual rear painted steel wheels
• Wheels: 16' x 6.5' 8-Lug Painted Steel HD (4)
• Wheels: 16' x 6.5' 8-Lug Painted Steel HD (6)
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3080
• Curb Weight - Rear (lbs): 1828
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 13000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XLP
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YLP
• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2335
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 2150
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159
• Length, Overall w/o rear bumper (in): 266.7
• Width, Max w/o mirrors (in): 94.53
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 82.9
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.8
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary
• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
